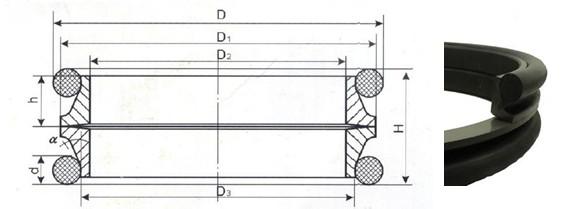

Common type of floating oil

Number Two-round specifications Outer diameter Internal diameter Height
1 SY0380 50.6 38 21.2
2 SY0430 58 43 24
3 SY0450 58 45 21
4 SY0460 59 46 20
5 SY0480 62.2 48 25.4
6 SY0510 65 51 27
7 SY0540 68 54 24.4
8 SY0555 70 55.5 22
9 SY0560 70 56 25
10 SY0578 75.5 57.8 26.4
11 SY0580A 77.4 58 33
12 SY0580B 75 58 27
13 SY0600 74 60 20.6
14 SY0610 73 61 27
15 SY0635A 80 63.5 26
16 SY0635B 82.4 63.5 31.8
17 SY0640 78 64 25
18 SY0660 85 66 28
19 SY0670 80 67 20
20 SY0675 86.5 67.5 31.8
21 SY0680 84 68.8 25.2
22 SY0690A 84 69 24
23 SY0690B 90 69 29
24 SY0700 90 70 28
25 SY0710A 84 71 20
26 SY0710B 90 71 29
27 SY0717 90 71.7 29
28 SY0720 89 72 23.8
29 SY0730 92 73 31.8
30 SY0733 88.3 73.3 20
31 SY0737 86.8 73.7 21.5
32 SY7460 93.3 74.6 29
33 SY0760 94 76 29
34 SY0770 93.3 77 29
35 SY0775A 88.5 77.5 30
36 SY0775B 92 77.5 16
37 SY0800A 100 80 29
38 SY0800B 100 80 30
39 SY0810 98 81 28
40 SY0820 98 82 22
41 SY0830 102 83 28
42 SY0888 108 88 24
43 SY0900 105 90 26
44 SY0905 109.5 90.5 31.8
45 SY0920 109 92 22
46 SY0935 107 93.5 22
47 SY0950A 111 95 24
48 SY0950B 114 95 32
49 SY1000 119 100 31.8
50 SY1017 120.2 101.7 29.4
51 SY1020 122 102 33.4
52 SY1030 117 103 20
53 SY1040 117 104 21.4
54 SY1040 125 104 28
55 SY1042 121 104.2 23.4
56 SY1070 125 107 24
57 SY1090A 132 109 32
58 SY1090B 131.5 109 31
59 SY1100A 127 110 31
60 SY1100B 128 110 32
61 SY1110 133 111 32
62 SY1145 129 114.5 21
63 SY1150 137 115 31
64 SY1170 140 117 29
65 SY1180 140 118 29.8
66 SY1200 139 120 31.8
67 SY1200 142 120 38
68 SY1240 141 124 22
69 SY1250 144 125 31.8
70 SY1270A 141 127 29
71 SY1270B 145.6 127 33.4
72 SY1300 151 130 32
73 SY1355 154.5 135.5 28
74 SY1370 153.2 137 25.4
75 SY1420 156 142 25
76 SY1430A 157.5 143 25.4
77 SY1430B 160 143 27
78 SY1440 157 144 26
79 SY1460 171.7 146 38
80 SY1480 170 148 34
81 SY1500A 167 150 28
82 SY1500B 171 150 32
83 SY1500C 172 150 40
84 SY1530 171.5 153 28
85 SY1540A 168.2 154 26
86 SY1540B 173.5 154 32
87 SY1600A 180 160 32
88 SY1630B 191.5 163 38
89 SY1640 189 164 30
90 SY1650 181 165 27.2
91 SY1713 185.3 171.3 40
92 SY1720 194.4 172 31.8
93 SY1760 195 176 28
94 SY1770 200 177 30
95 SY1780A 199 178 32
96 SY1780B 205 178 38
97 SY1785 200.5 178.5 38
98 SY1820A 207 182 36
99 SY1820B 210 182 38
100 SY1820C 210 182 46
101 SY1830 211 183 38
102 SY1900 216 190 46
103 SY1910 210 191 28
104 SY1920A 209 192 30
105 SY1920B 215 192 34
106 SY1950 216.5 195 31.8
107 SY2000 228.5 200 38
108 SY2050 227 205 30
109 SY2087 222.8 208.7 26
110 SY2090 234 209 42
111 SY2160 237 216 30
112 SY2200A 239.5 220 32
113 SY2200B 246 220 36
114 SY2215 241.5 221.5 25
115 SY2225 246 222.5 36
116 SY2230 248 223 37
117 SY2246 251.7 224.6 38
118 SY2250 252 225 40
119 SY2300 260 230 36
120 SY2310 260 231 39
121 SY2350 258 235 34
122 SY2380 261 238 32
123 SY2390 268.5 239 42
124 SY2400A 262.8 240 38
125 SY2400B 267 240 42
126 SY2400C 268 240 38
127 SY2420 262.8 242 40
128 SY2450 264.5 245 32
129 SY2500A 277.4 250 43
130 SY2500B 272.4 250 43.2
131 SY2520 280.5 252 38
132 SY2560 279 256 36
133 SY2600 288 260 41
134 SY2650 293 265 46
135 SY2730 300 273 38
136 SY2750 303 275 38
137 SY2780 309.5 278 40
138 SY2980 328 298 42
139 SY3000A 325 300 38
140 SY3000B 328 300 38
141 SY3180A 341 318 38
142 SY3180B 346.5 318 38
143 SY3187 347 318.7 46
144 SY3380 368 338 40
145 SY3400 368 340 40
146 SY3510 375 351 38
147 SY3550 375 355 38
148 SY3560 381.5 356 38
149 SY3660 394 366 38
150 SY3700 398 370 38
151 SY3800 405 380 40
152 SY3870 415 387 38
153 SY4292 457.2 429.2 38
154 SY4310 456.5 431 38
155 SY4300 459.2 430 38
156 SY4600 490 460 42
157 SY4650 495 465 43.6
158 SY4720 500 472 50
159 SY5000 527 500 43.4
160 SY5060 534 506 44
161 SY5080 548 508 60
162 SY5300 560 530 50
163 SY5380 566.8 538 43.6
164 SY5590 590 559 50
165 SY5910 623 591 50
166 SY5960 628 596 50
167 SY6600 695 660 53
168 SY6667 700 666.7 45
169 SY6670 700 667 50
170 SY7180 750 718 50
171 SY7300 768 730 50
172 SY7700 826 770 80
173 SY7800 836 780 80
174 SY8170 865 817 46.6
175 SY8250A 865.3 825 46.6
176 SY8250B 865.3 825 43.6
177 SY8310 856 831 44
178 SY8300 886 830 80
179 SY8320 865 832 43.6
180 SY9020 941 902 60
181 SY9200 976 920 80
